Telemetry Antenna Options (T24-ANTA, T24-ANTB, T24-ANTC, T24-ANTD, T24-ANTE)
View more videos on
Our
YouTube Channel !
- Approved telemetry antenna options for various T24 modules
- External antennas are weatherised
- Low profile versions suitable for metal bulkhead mounting (T24-ANTD & T24-ANTE)
The T24-ANTA, T24-ANTB, T24-ANTC, T24-ANTD and T24-ANTE are five T24 telemetry antenna options which can be integrated with any of the T24 Modules which are factory fitted with UFL antenna connectors (such as the external antenna options of the transmitter modules e.g. T24-SAe, T24-IAe, T24-VAe). Options also exist for antennas to be fitted to other modules within the T24 range - please contact us for more information.
The T24-ANTA is a PCB antenna designed to be fitted inside a plastic enclosure. It comes with a 100 mm cable and UFL connector.
The T24-ANTB is a whip antenna with a fixed 90 degree elbow designed for mounting externally. Supplied with a 100 mm cable and UFL connector. Recommended operating temperature range -20°C to +85°C
The T24-ANTC is a whip antenna with a variable angled elbow for mounting externally. Supplied with a 100 mm cable and UFL connector. Recommended operating temperature range -40°C to +90°C
The T24-ANTD is a 'puck' antenna designed for mounting externally. It is suitable for applications requiring a low physical profile and high gain. Fitted with a 660 mm cable and RPSMA connector and supplied with a 100 mm RPSMA to UFL adaptor cable.
The T24-ANTE is a 'puck' antenna designed for mounting externally. It is suitable for applications requiring a low physical profile and high gain. Fitted with a 100 mm cable and UFL connector.

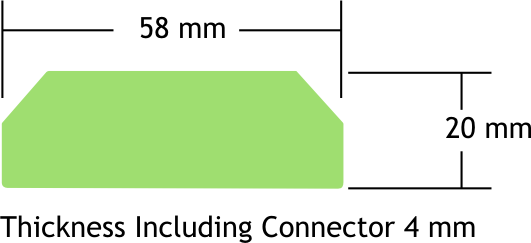

T24-ANTA

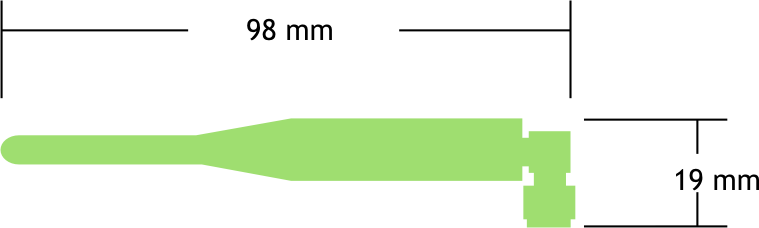

T24-ANTB

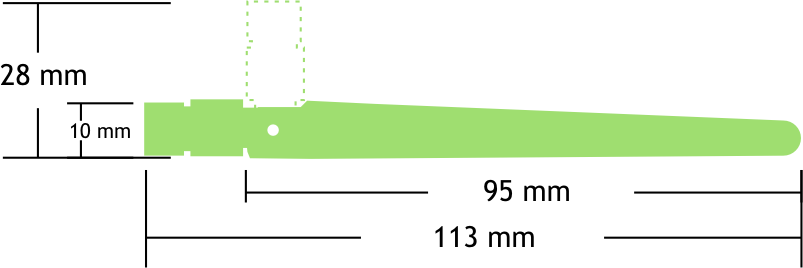

T24-ANTC

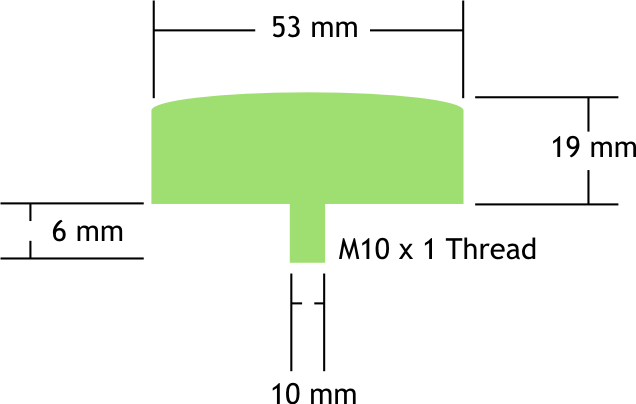

T24-ANTD & ANTE
.png)
Documents
- T24-ANT Product Sheet : Wireless Telemetry Antenna Options
- T24 Telemetry User Manual : T24 Wireless Telemetry User Manual (12 MB) Version 01.13
- T24 Antenna Comparison
Software
No relevant software available
Product order options
| T24-Antenna | Code |
|---|---|
| Antenna for OEM PCB 'e' variants only (PCB) | T24-ANTA |
| Antenna for OEM PCB 'e' variants only (Whip) | T24-ANTB |
| Antenna for OEM PCB 'e' variants only (Swivel) | T24-ANTC |
| Antenna for OEM PCB 'e' variants only (Puck, 0.6 m cable) | T24-ANTD |
| Antenna for OEM PCB 'e' variants only (Puck, 100 mm cable) | T24-ANTE |
